Product Description

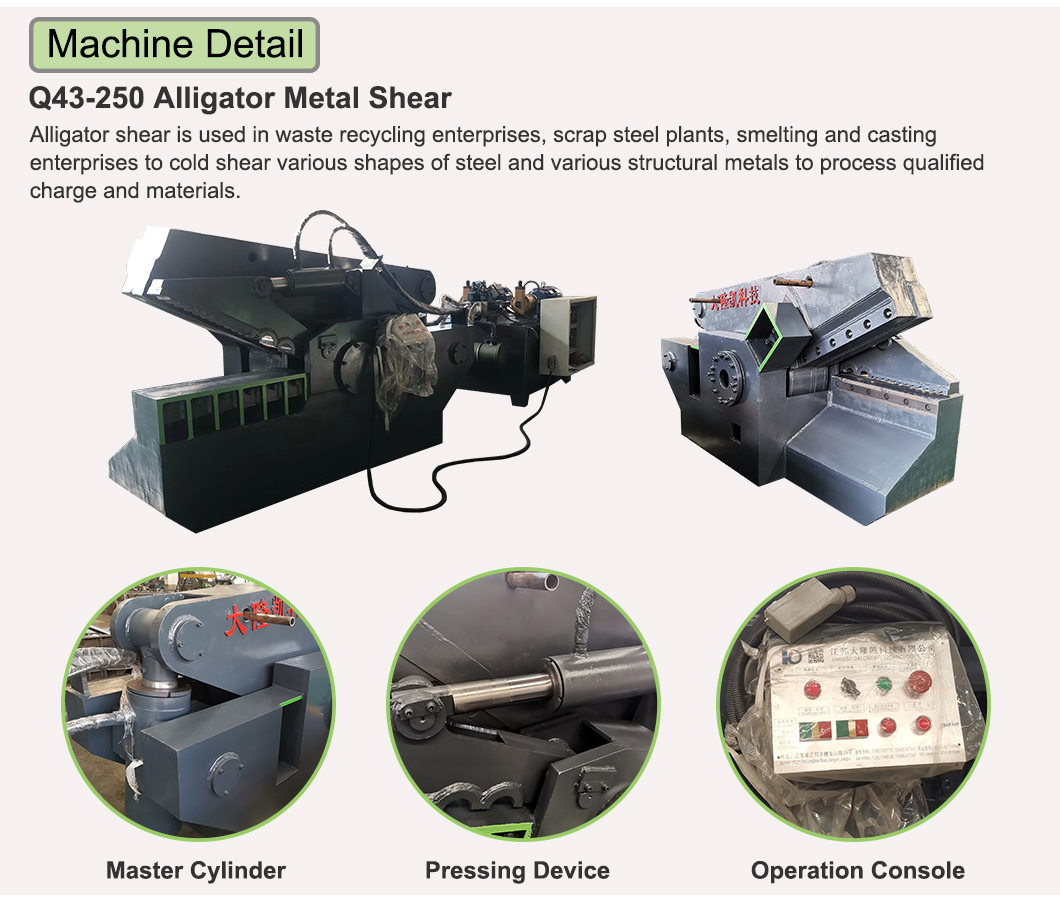

Q43 series shearing machine type multifunctional shearing machine can cut various shapes of scrap metal, and it is also a universal shear.
Features of the cutting machine
1. It adopts the integrated control of machine, electricity and hydraulic, which can start and stop at any position, and it is easy to realize overload protection.
2. Single and continuous operation can be selected according to the needs of use.
3. There is no need for anchor bolts for equipment installation, which is convenient for production or equipment layout adjustment
4. Can be equipped with diesel engine as backup power supply.
Technical Parameters
|
Model |
Max.Cutting Force(ton) |
Max Blade Opening |
Blade Length (mm) |
Power (KW) |
Cutting Specifications (mm) |
Floor space |
|
Q43-63 |
63 |
320 |
800 |
7.5 |
30*30 mm φ20 |
3500*1200 mm |
|
Q43-100 |
100 |
320 |
800 |
11 |
40*40 mm φ35 |
3700*1300 mm |
|
Q43-160 |
160 |
320 |
800 |
18.5 |
55*55 mm φ50 |
5000*1800 mm |
|
Q43-200 |
200 |
440 |
1000 |
22 |
65*65 mm φ75 |
5500*2000 mm |
|
Q43-250 |
250 |
450 |
1000/1200 |
2*15 |
70*70 mm φ80 |
5700*2500 mm |
|
Q43-315 |
315 |
450/520 |
1200 |
2*18.5 |
80*80 mm φ85 |
6500*2800 mm |
Application
It is suitable for cold shearing of metal profiles and metal structural parts of various cross-sectional shapes, and is processed into qualified charge. It is suitable for the steel industry, non-ferrous metal industry, scrap processing and distribution centers (bases), renewable resource processing enterprises, and scrap car dismantling enterprises.
