Q43-100 Crocodile Shear Sheet Metal Cutting Machine For Steel Plate Hydraulic Scrap Shears
Product Description

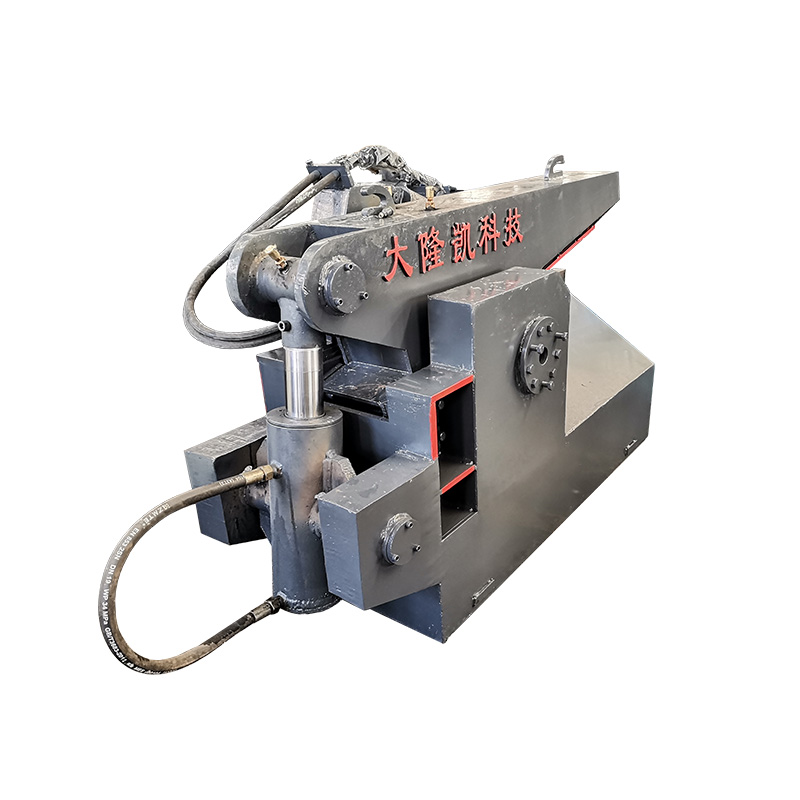

Crocodile hydraulic steel shearing machine/ series alligator scrap metal shears for sale is one of the metal shears, it is hydraulically driven, with reliable safety and convenient operation. Cutting edge length of shearing machine: 400 mm, 600 mm, 700 mm, 800 mm, 1000 mm, 1200 mm; shear force ranges from 63 tons to 400 tons in eight grades, suitable for users with different sizes and requirements.
Features
1. The blade is screwed, replaceable and available on all 4 sides.
2. Adjustment system and friction plate can adjust the gap between the cutter head and the knife holder to prevent the cutter head from reversing.
3. High-pressure soft oil pipe to reduce vibration and prevent oil leakage.
4. PLC and manual operation can choose.
5. Hydraulic transmission system, safe and reliable design, convenient operation.
6. Various models have different cutting forces, and the blade length can be customized according to customer needs.
Technical Parameters
|
Model |
Max.Cutting Force(ton) |
Max Blade Opening |
Blade Length(mm) |
Power(KW) |
Cutting Specifications(mm) |
|
Q43-63 |
63 |
320 |
800 |
7.5 |
30*30 mm φ20 |
|
Q43-100 |
100 |
320 |
800 |
11 |
40*40 mm φ35 |
|
Q43-120 |
120 |
320 |
800 |
15 |
45*45 mm φ45 |
|
Q43-160 |
160 |
320 |
800 |
18.5 |
55*55 mm φ50 |
|
Q43-200 |
200 |
440 |
1000 |
22 |
65*65 mm φ75 |
|
Q43-250 |
250 |
450 |
1000/1200 |
2*15 |
70*70 mm φ80 |
|
Q43-315 |
315 |
450/520 |
1200 |
2*18.5 |
80*80 mm φ85 |
|
Q43-400 |
400 |
660 |
1200/1500 |
2*22 |
90*90 mm φ95 |
|
Q43-500 |
500 |
710 |
1600 |
2*30 |
90*90 mm φ100 |
|
Q43-630 |
630 |
730 |
1800 |
2*45 |
105*105 mm φ120 |
