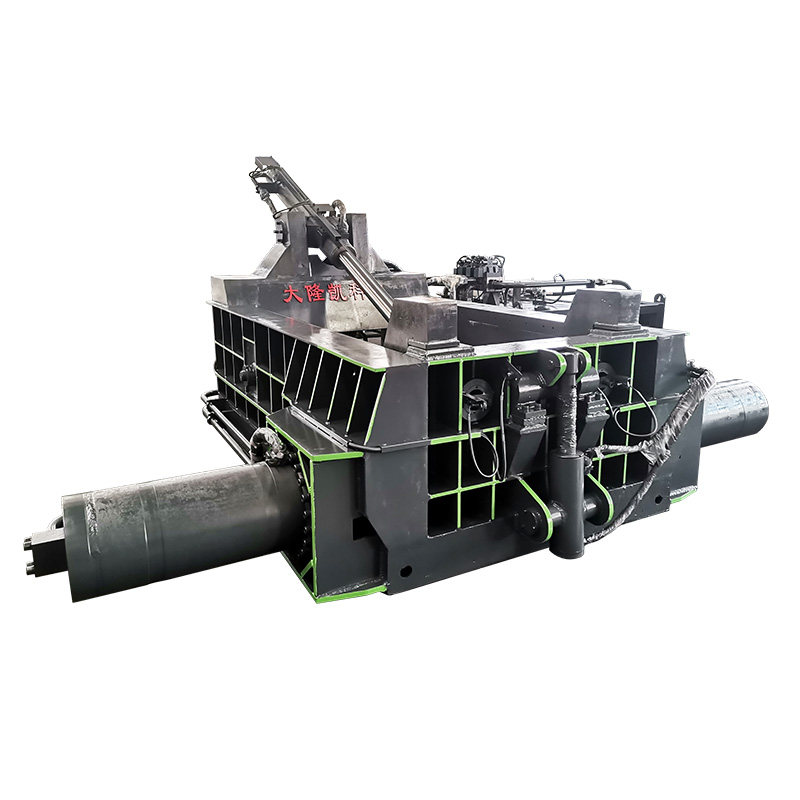

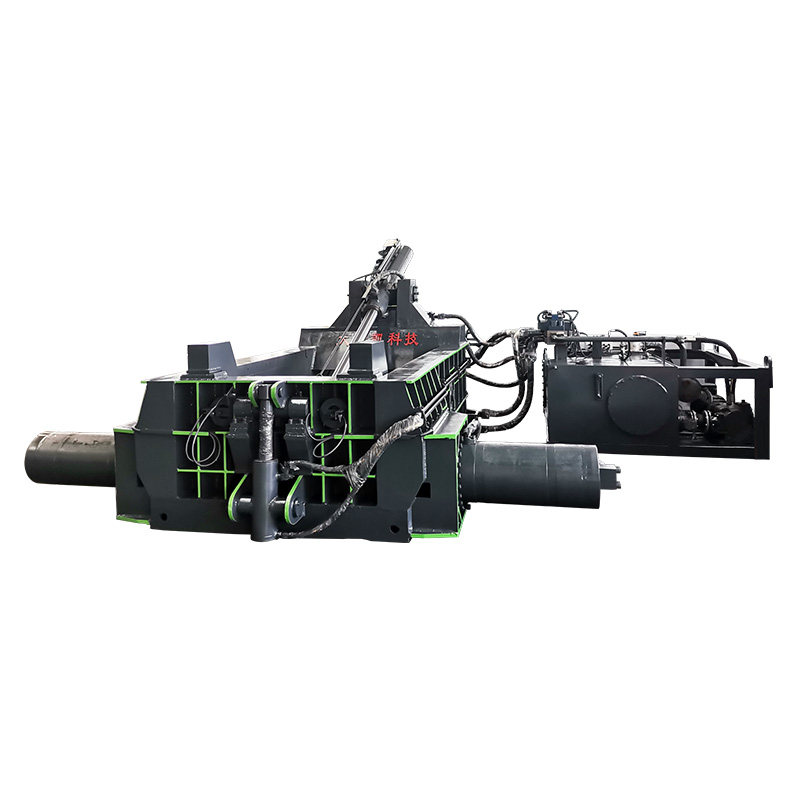

Forward Turning-out Y81QF-200 Scrap Metal Baler Press For Scrap Aluminium Recycling Plant

Forward Turning-out Y81QF-200 Scrap Metal Baler Press For Scrap Aluminium Recycling Plant

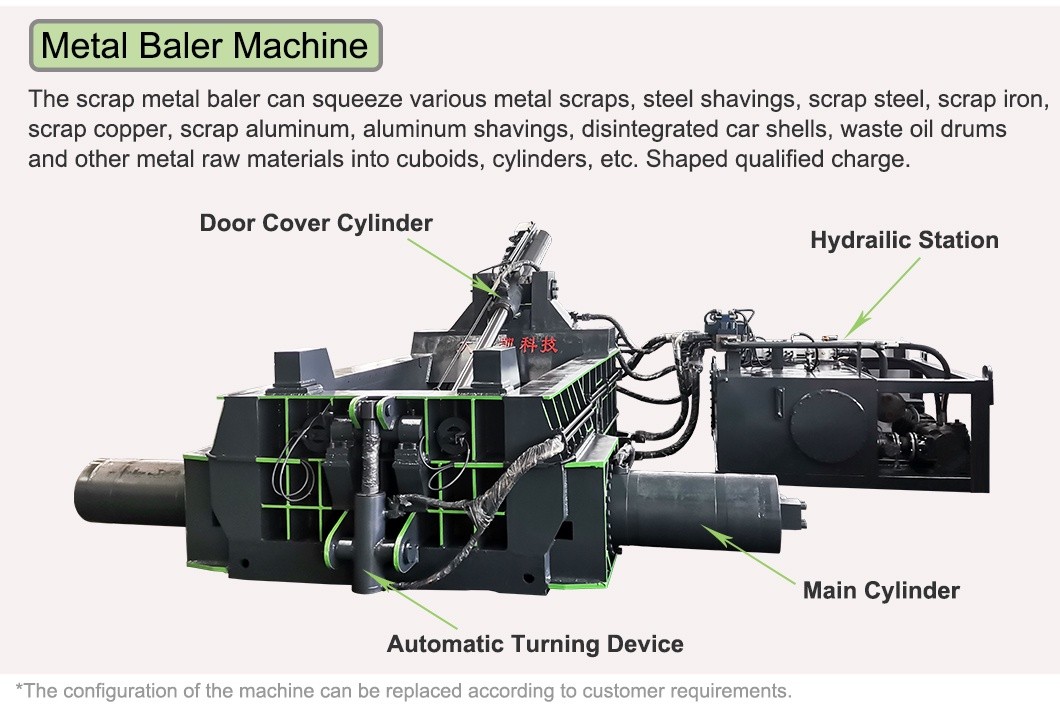

Y81QF-200 is a small and medium hydraulic metal baler. The pressure of the main cylinder of this scrap metal baler is 2000 KN, and it adopts double master cylinders, which can automatically turn out the bales before and are controlled by PLC, which is easy to operate. Scrap metal balers are mostly used in scrap metal recycling plants to compress various scrap metal scraps. According to the customer’s needs, both the bin size and the master cylinder pressure can be customized.
CONTACT NOW

Details

Introduction

Y81QF-200 is a small and medium hydraulic metal baler. The pressure of the main cylinder of this scrap metal baler is 2000 KN, and it adopts double master cylinders, which can automatically turn out the bales before and are controlled by PLC, which is easy to operate. Scrap metal balers are mostly used in scrap metal recycling plants to compress various scrap metal scraps. According to the customer’s needs, both the bin size and the master cylinder pressure can be customized.

Technical Parameters

1

Main oil cylinder

Model

YG320/220

Qty.

2pc

Normal force

2000KN

Stroke

570mm

2

Side pressure cylinder

Model

YG220/160

Qty.

2pc

Normal force

1000kN*2

Stroke

1650mm

3

Turning bag cylinder

Model

YG180/120

Qty.

1pc

Normal force

650kN

Stroke

1520mm

4

Door cover cylinder

Model

YG125/80

Qty.

1pc

Normal force

95kN

Stroke

275mm

5

Productivity

About 7-15 bags/hour

6

Outlet method

Forward turning-out

7

Power Specification

380 V/3P

8

Power

62.05 KW
