Introduction of the metal baler

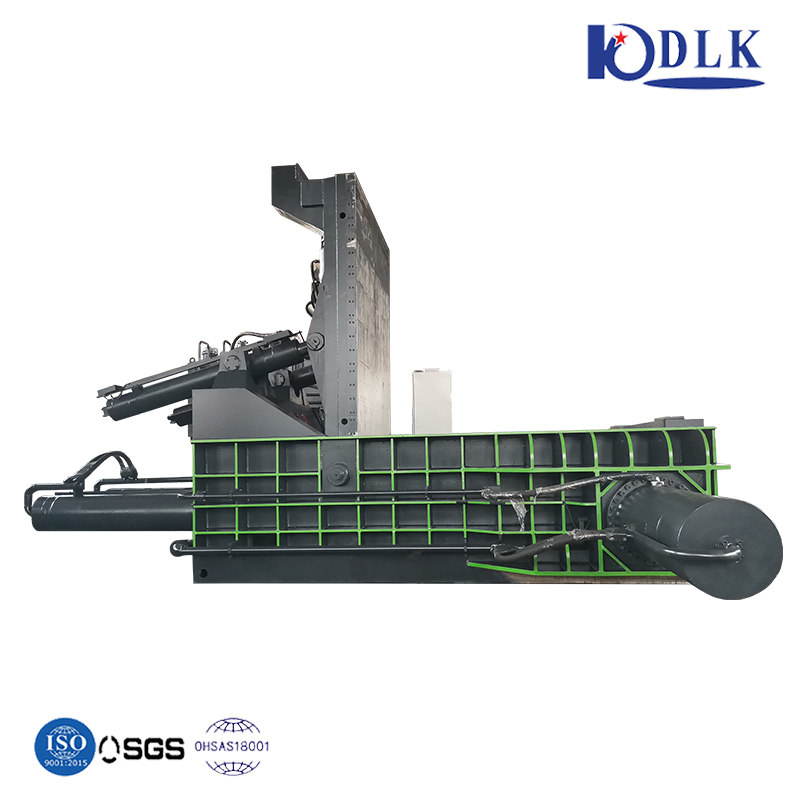

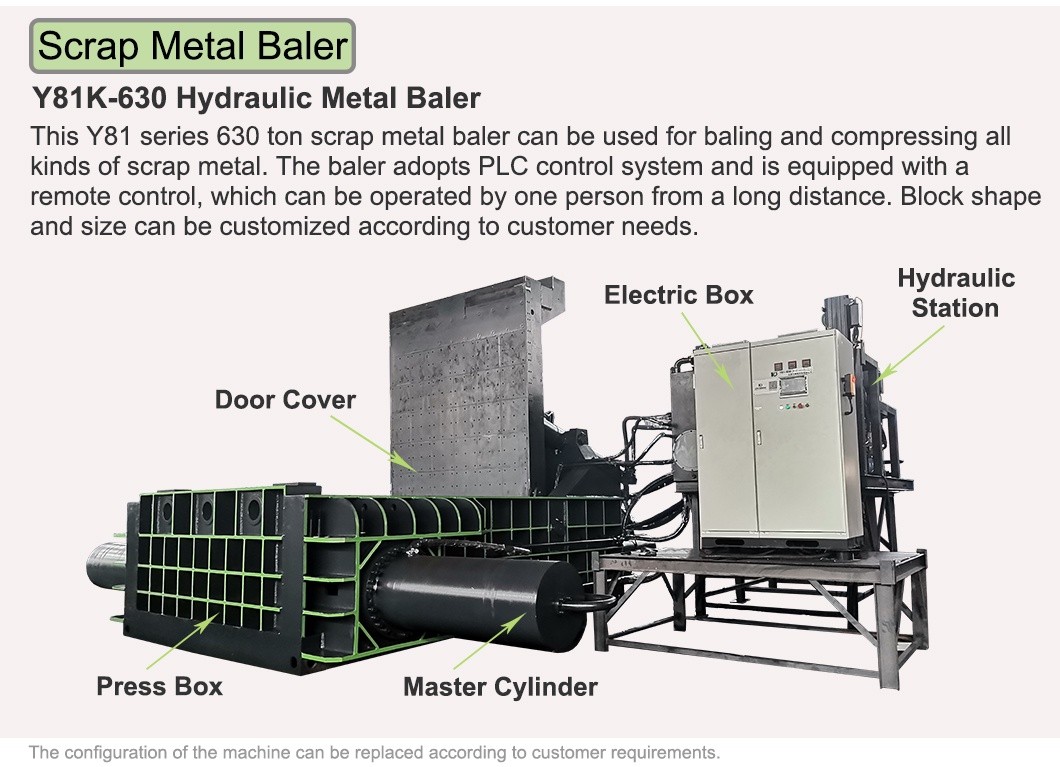

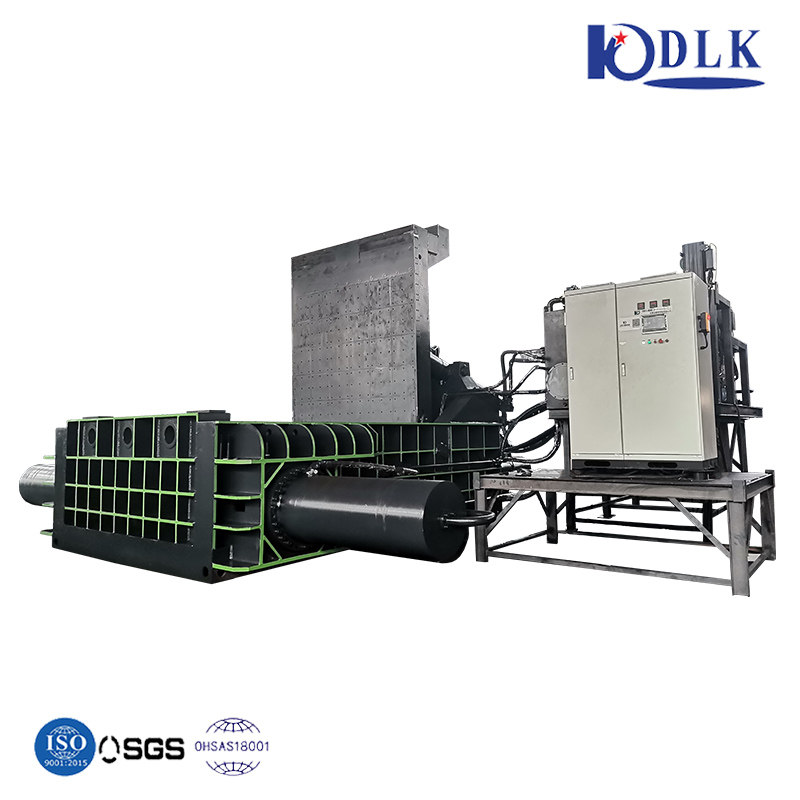

This Y81 series 630 ton scrap metal baler can be used for baling and compressing all kinds of scrap metal. According to the type, size, thickness, etc. of the waste, the matching master cylinder pressure and bin size can be customized. This scrap metal baler with a master cylinder pressure of 630 tons is a medium-sized baler, the size of the material box is 3500*3000*1300 mm, the cross-sectional size of the block is 600*600 mm, the block structure is compact, and the density is high. Packaging materials are also relatively wide, scrap copper, scrap iron, scrap stainless steel, scrap aluminum can be processed. The baler adopts PLC control system and is equipped with a remote control, which can be operated by one person from a long distance. Block shape and size can be customized according to customer needs.

Technical Parameters

The parameters in the above table are for reference only.

Features of the baler

1.All models of thr metal balers are hydraulically driven and can be manually operated or PLC controlled automatically.
2.The package delivery methods include turning package, side pushing package, forward pushing package, manual picking, etc.
3.Where there is no power supply, diesel engine can be used as power.
4.The size of the feeding box and the shape and size of the bale can be designed and customized according to the user’s raw material specifications.
