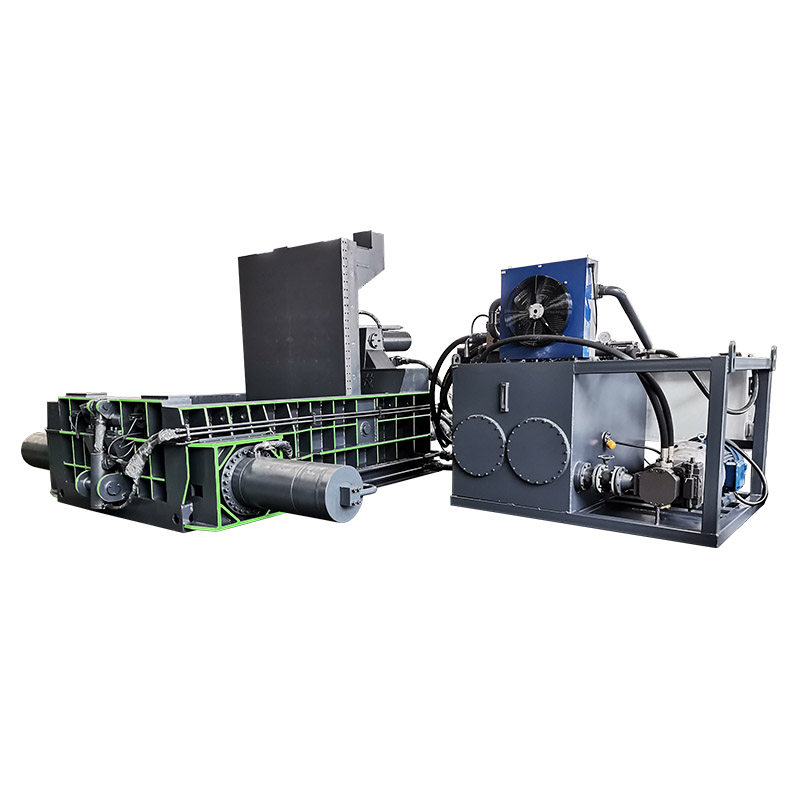

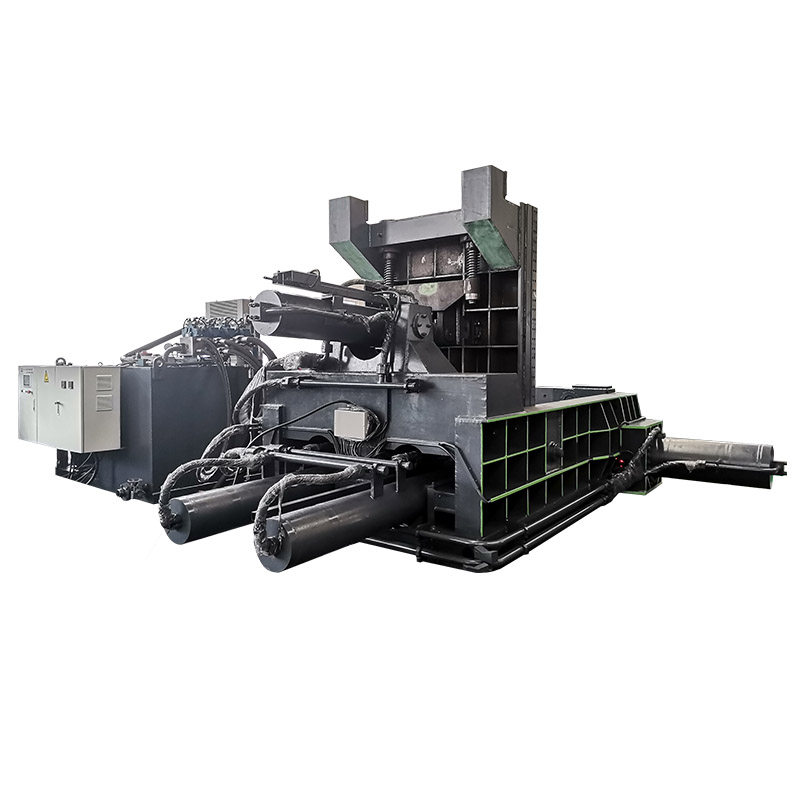

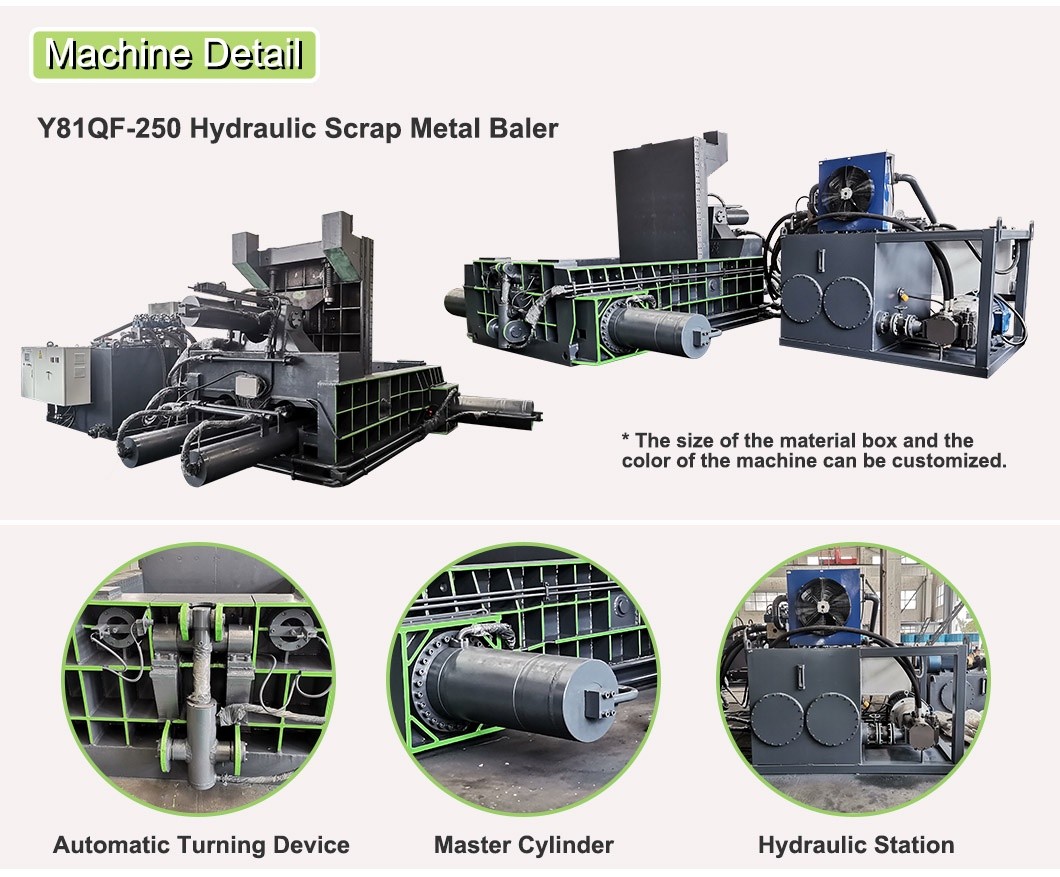

Y81QF-250 Automatic Turn Out Hydraulic Scrap Baler Baling Press Machine For Steel Mill

Y81QF-250 Automatic Turn Out Hydraulic Scrap Baler Baling Press Machine For Steel Mill

Y81 series hydraulic metal balers can be used to process all kinds of scrap metal (aluminum scrap, scrap iron, scrap copper, steel shavings, scrap metal car frame, etc.), which can compress these scrap metal materials into rectangular, cube, octagonal, etc. . According to the size and shape of the block, the corresponding material box can be customized.
CONTACT NOW

Details

Introduction

Y81 series hydraulic metal balers can be used to process all kinds of scrap metal (aluminum scrap, scrap iron, scrap copper, steel shavings, scrap metal car frame, etc.), which can compress these scrap metal materials into rectangular, cube, octagonal, etc. . According to the size and shape of the block, the corresponding material box can be customized. This type of metal baler is one of the must-have machines in the scrap metal recycling industry. It greatly reduces the transportation and storage costs of scrap metal materials and saves costs for the recycling industry.

Technical specification

No.

Parameter name and content

1

Hydraulic system working pressure≤26MPa

2

Tank (compression chamber) specifications2500*2000*1000 mm

3

Block section size*minimum length(600*600)*600 mm

4

Bulk density (steel)≤1850/m³

5

Single no-load cycle timeabout 120 seconds

6

Operation methodHand-in-one, remote control operation

7

ProductivityAbout 7-15 bags/hour

8

Outlet methodForward turning-out

9

Power Specifications380 V/3P

10

Total equipment power62.05 KW

11

Fuel tank capacity2200 L

12

Floor space6000*5500 mm


Application

The horizontal metal scraps baler is suitable for various large, medium and small factories, waste metal recycling processing industry and non-ferrous metal smelting industry.

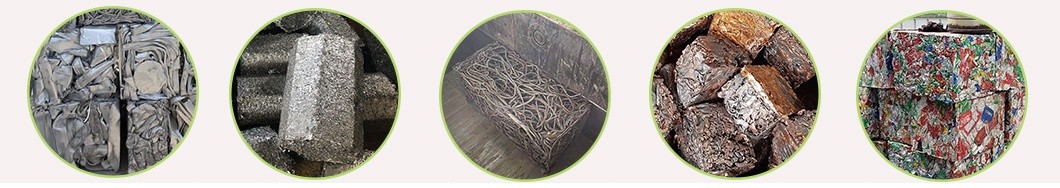

The used metal baler machine can press various metal scraps, steel shavings, scrap steel, scrap aluminum, scrap copper, etc. into qualified shapes such as cubes, cylinders, octagons, etc. to reduce the transportation and smelting costs of metal scraps materials.
