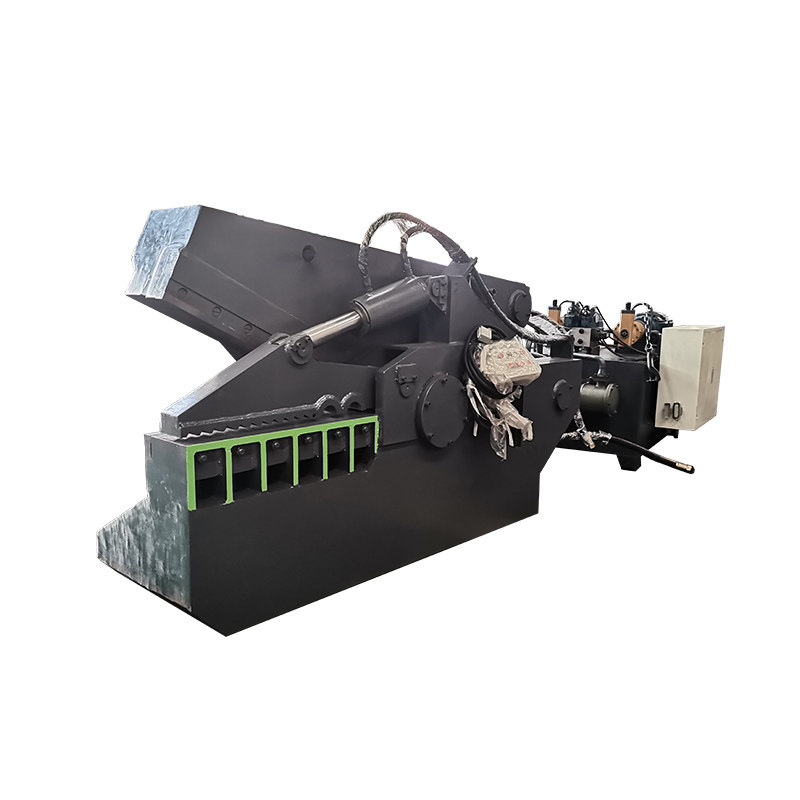

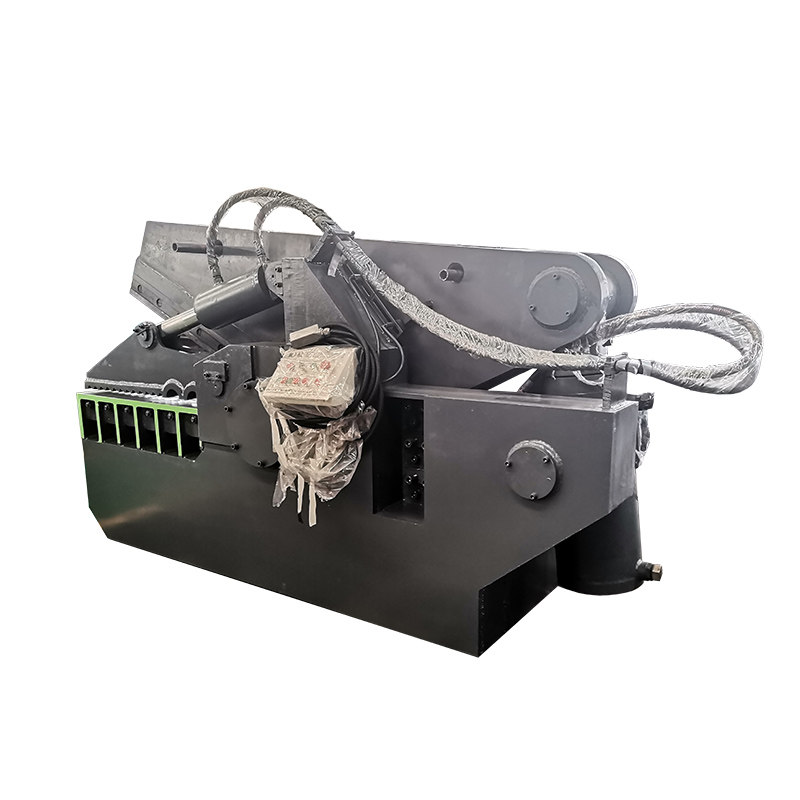

Q43-250 Top Quality Hydraulic Alligator Shearing Machine For Scrap Metal

Q43 series shearing machine is mainly used for cutting scrap metal steel plates, steel pipes and other shaped steels and various structural parts. Q43 Alligator Shear is a universal shearing machine.

CONTACT NOW

Details

Product Description

Q43 series shearing machine is mainly used for cutting scrap metal steel plates, steel pipes and other shaped steels and various structural parts. Q43 Alligator Shear is a universal shearing machine.

Technical Parameters

NO.	Parameter content					Remark
1	shear cylinder	Model	YG250/180	Stroke	460 mm	250 Ton
1	shear cylinder	maximum shear force	2500 KN	Qty.	1pc	250 Ton
2	Pressure cylinder	Model	YG140/90	Stroke	195 mm	50 Ton
2	Pressure cylinder	maximum shear force	500 KN	Qty.	1pc	50 Ton
3	Blade Length	1000 mm
4	maximum mouth opening	440 mm
5	Cut range	Round steel: φ60mm, square steel: 50x50mm, Steel plate: 35x200mm				blade root Location
6	Hydraulic system pressure	≤22MPa
7	Power	30 kw
8	Shear efficiency	6-10 times/minute				empty load
9	Power Specifications	380V/3P，50Hz
10	Operation method	Manual feeding, electronic control operation

Features:

1. Hydraulic driving, easy operation, easy maintenance;

2. Working blade length: 400 mm, 600 mm, 700 mm, 800 mm, 1000 mm, 1200 mm.The shear with over 700 mm knife edge can be used to shear waste car;

3. No requirements of foundation bolts for installation, the diesel may be used for driving at the place without power supplying.
