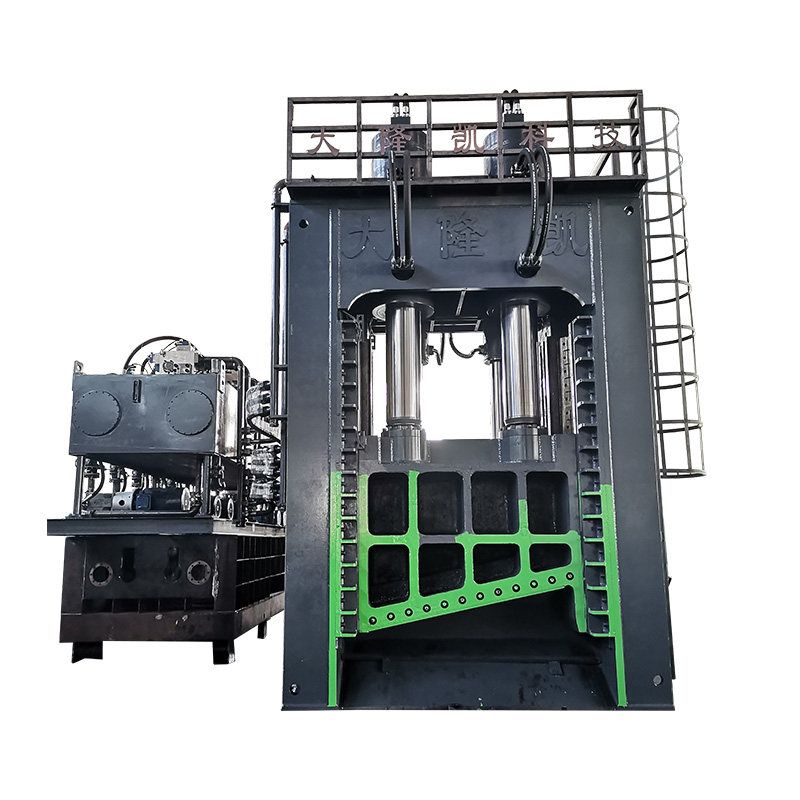

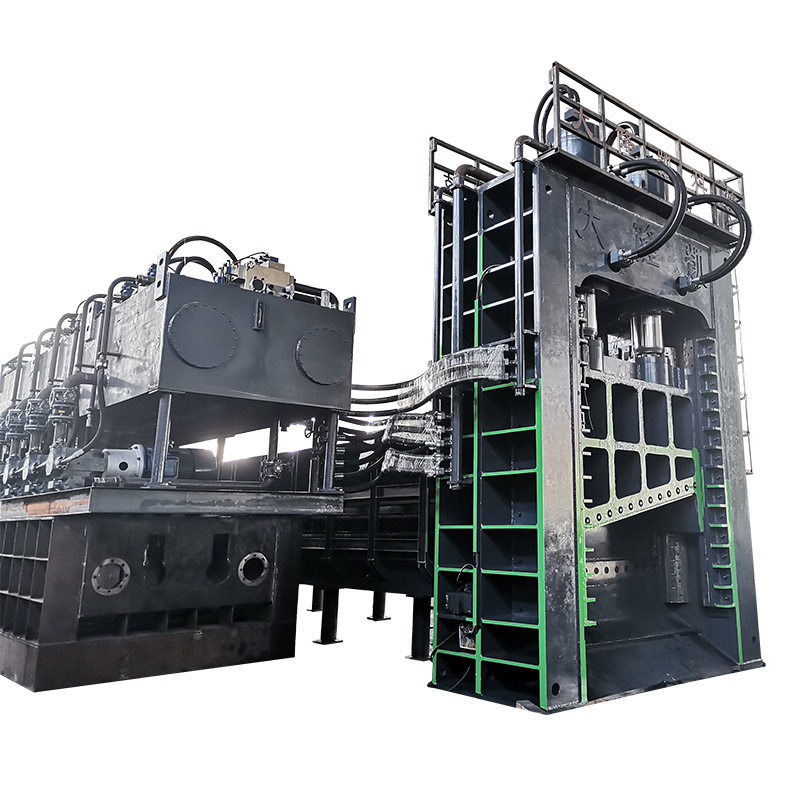

Q91Y Series 1250 Ton Scrap Metal Gantry Shear Steel Cutting Machine

Q91Y Series 1250 Ton Scrap Metal Gantry Shear Steel Cutting Machine

Q91Y series heavy-duty hydraulic shears are medium-sized scrap shears with a wide range of cutting materials and strong processing capacity. Its strong processing capacity is favored by scrap steel processing enterprises.
CONTACT NOW

Details

Product Description

Q91Y series heavy-duty hydraulic shears are medium-sized scrap shears with a wide range of cutting materials and strong processing capacity. Its strong processing capacity is favored by scrap steel processing enterprises. Gantry shears use sophisticated materials and complex manufacturing processes, and have strict requirements on the factory’s machining capabilities and the technical level of the workers.

Features of the gantry shear

1. Reduce costs: instead of labor, save time and effort;

2. Automation: automatic feeding, stable performance.

3. Stable work: using electro-hydraulic control system, low noise.

Technical Parameters

ModelMax.Cutting Force(ton)Press Box Size(mm)Blade Length(mm)Production Rate(t/h)Cutting Frequency(times/min)Power(kw)
Q91Y-4004006300*1300*50014004-72-490
Q91Y-5005006000*1500*70016005-82-4110
Q91Y-6306308000*1700*1200180012-152-4150
Q91Y-8008008000*1900*1200200015-252-4225
Q91Y-100010008000*2000*12002500/210018-252-4170
Q91Y-125012508000*2400*1200250020-282-4300

The parameters in the table are for reference only.
