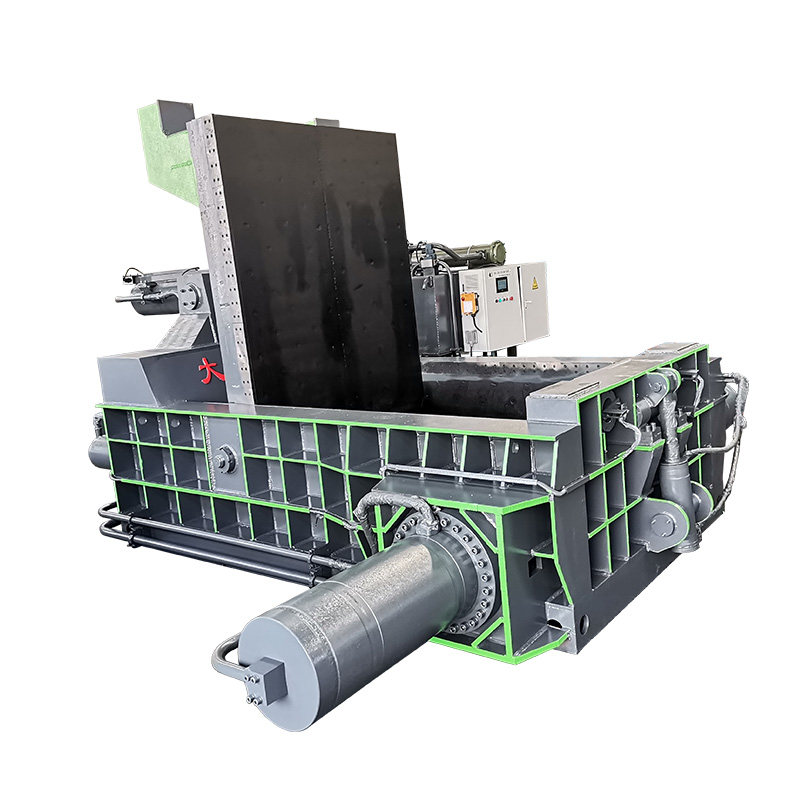

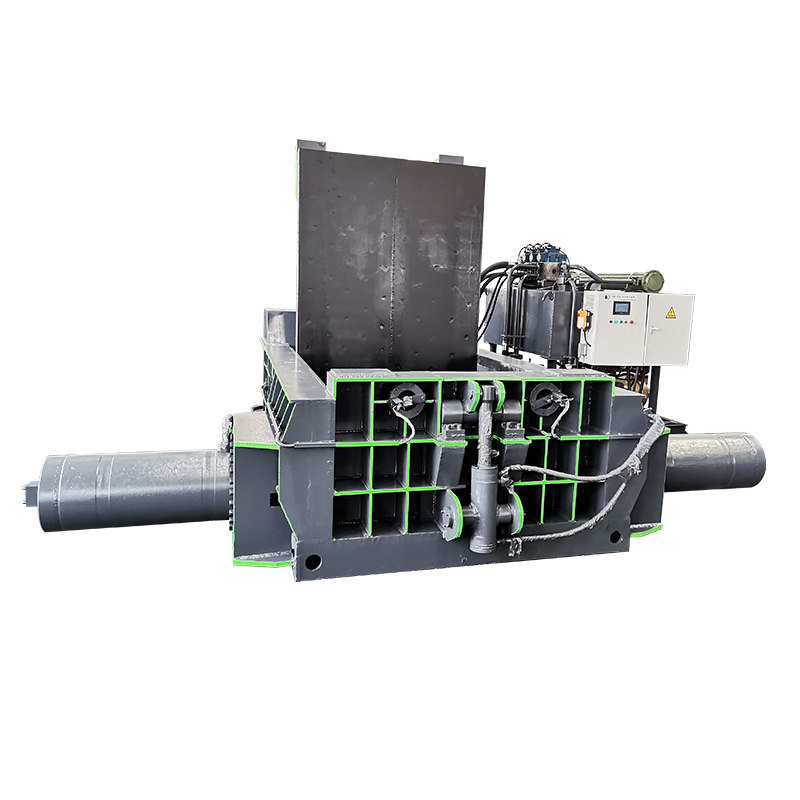

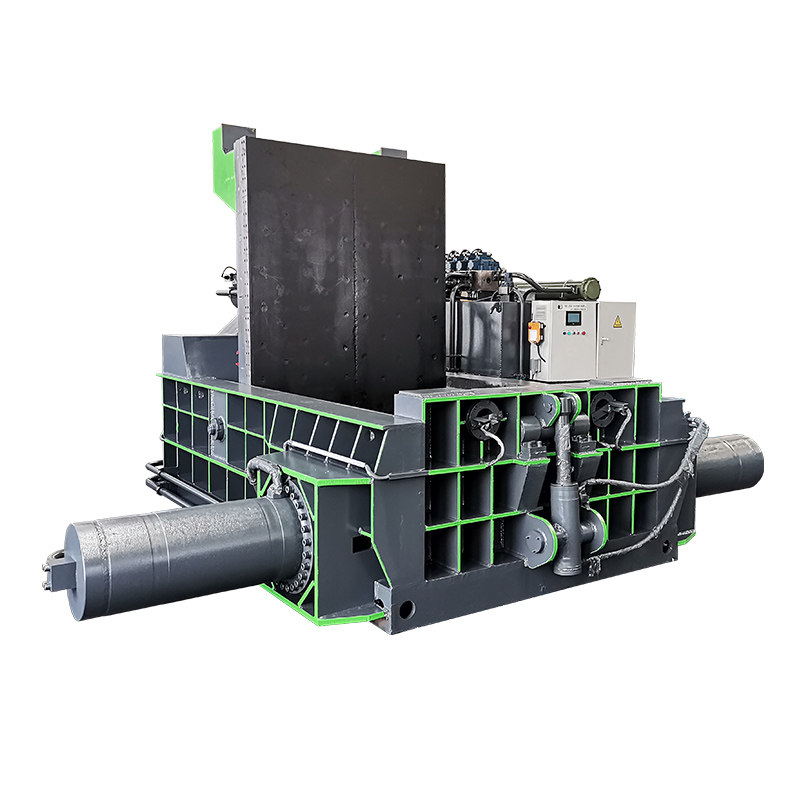

Automatic Metal Baler Pressing Machine

Automatic Metal Baler Pressing Machine

Y81QF-250 hydraulic metal baler is one of our more popular small balers. This machine adopts PLC control system, high efficiency, convenient operation, and can be operated by one person. Double main oil cylinders press material, compact structure and high density. The front of the material box is equipped with a material turning oil cylinder, which automatically turns out the material box after the material box is formed.
CONTACT NOW

Details

Product Description

Y81QF-250 hydraulic metal baler is one of our more popular small balers. This machine adopts PLC control system with high efficiency and easy operation, which can be operated by one person. The double main cylinder presses the material, and the pressed block has a compact structure and high density. The front side of the material box is equipped with a turning oil cylinder, and the turning oil cylinder automatically turns out the material box after the block is formed.

Technical Parameters

ModelMain Cyl.Force(ton)Press Box Size(mm)Bale Size(mm)Bale Weight(kg)Power(kw)
Y81F-2502502000*1750*1000500*500250-45060
Y81F-2502502500*2000*1000500*500/600*600300-50060

The parameters in the table are for reference only

Machine Detail

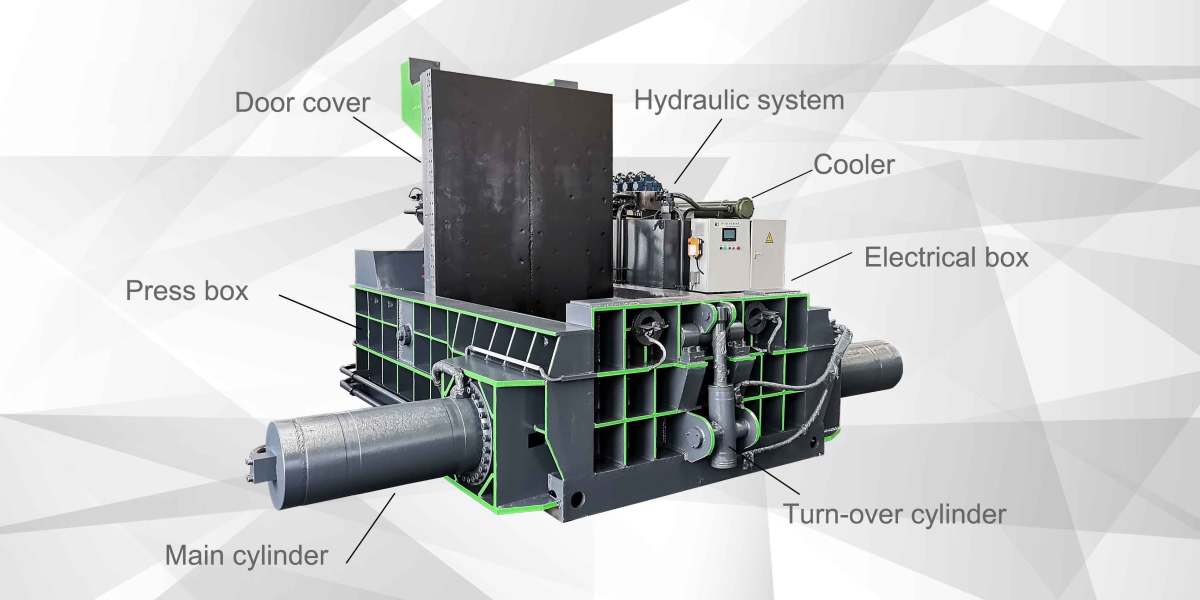

Y81QF-250

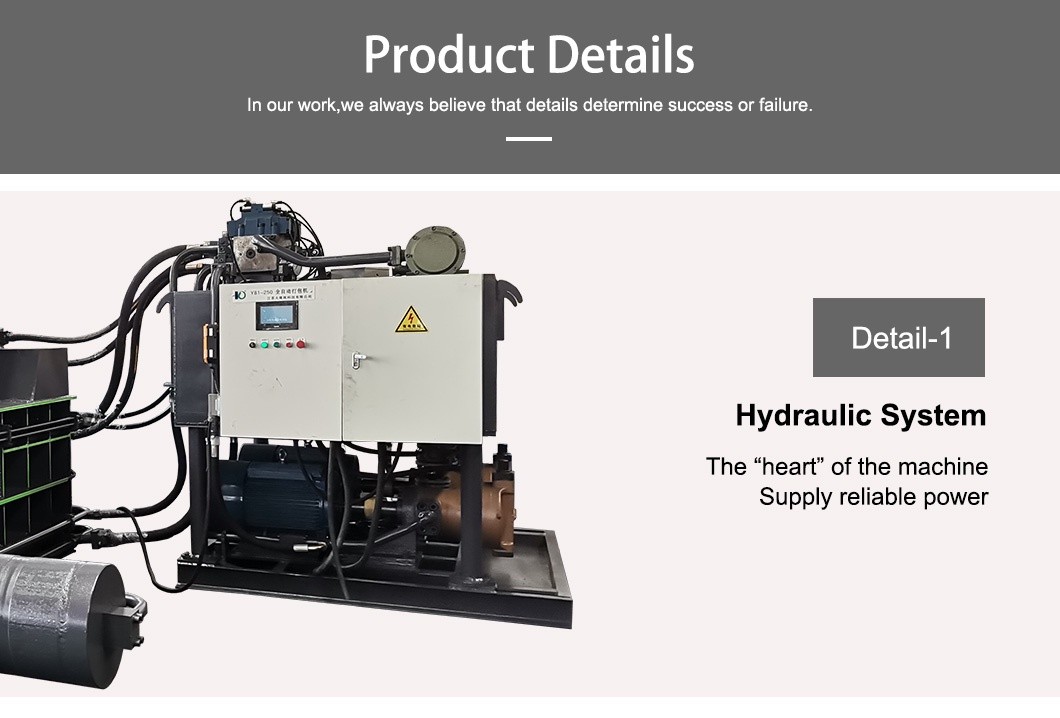

Y81QF-250-detail-1

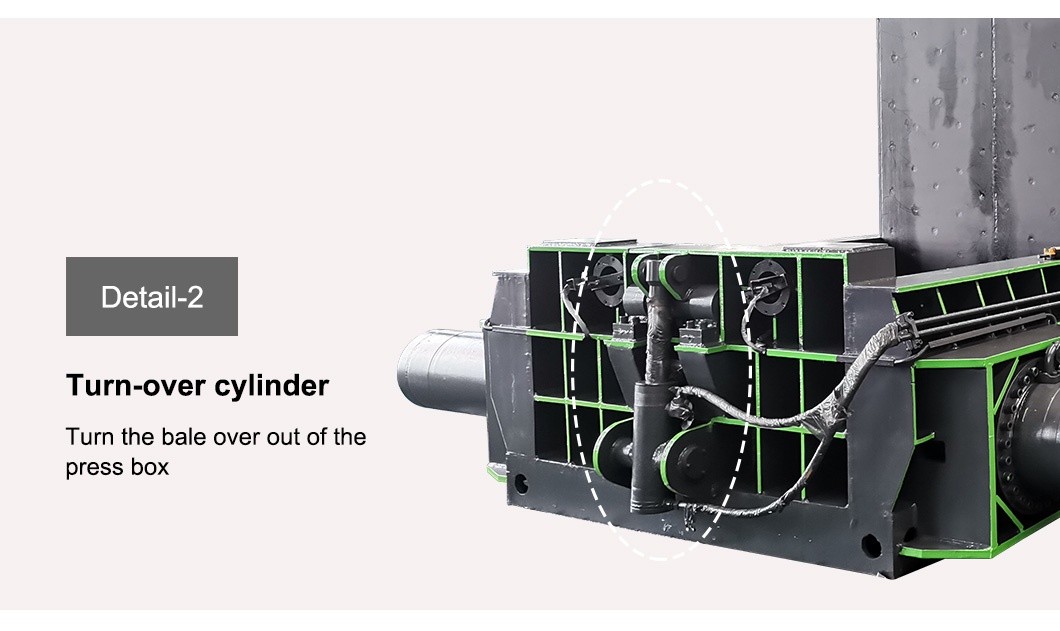

Y81QF-250-detail-2

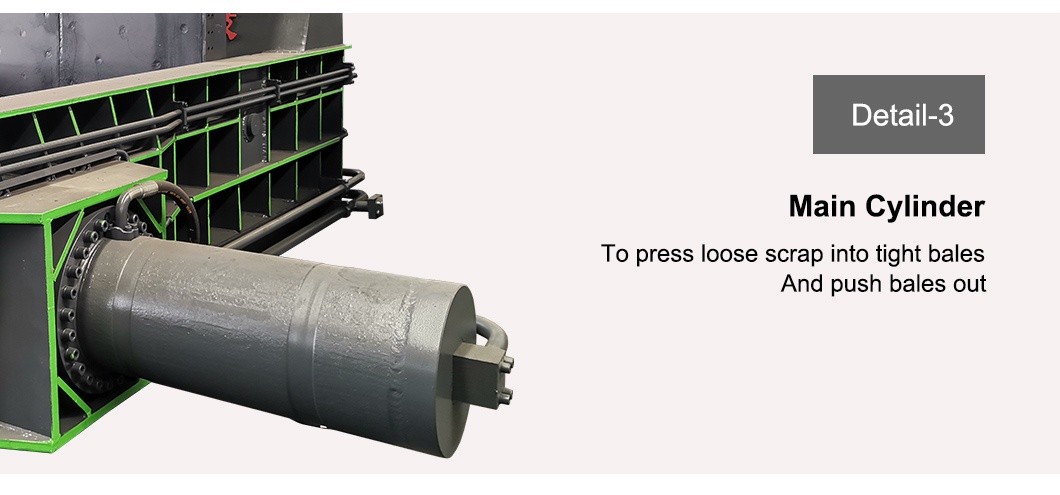

Y81QF-250-detail-3
