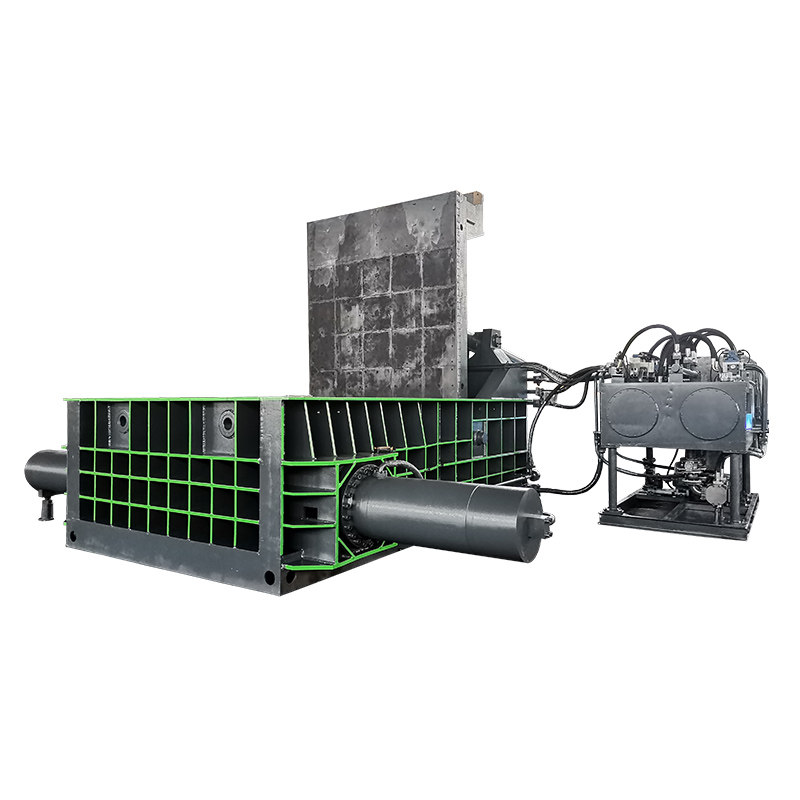

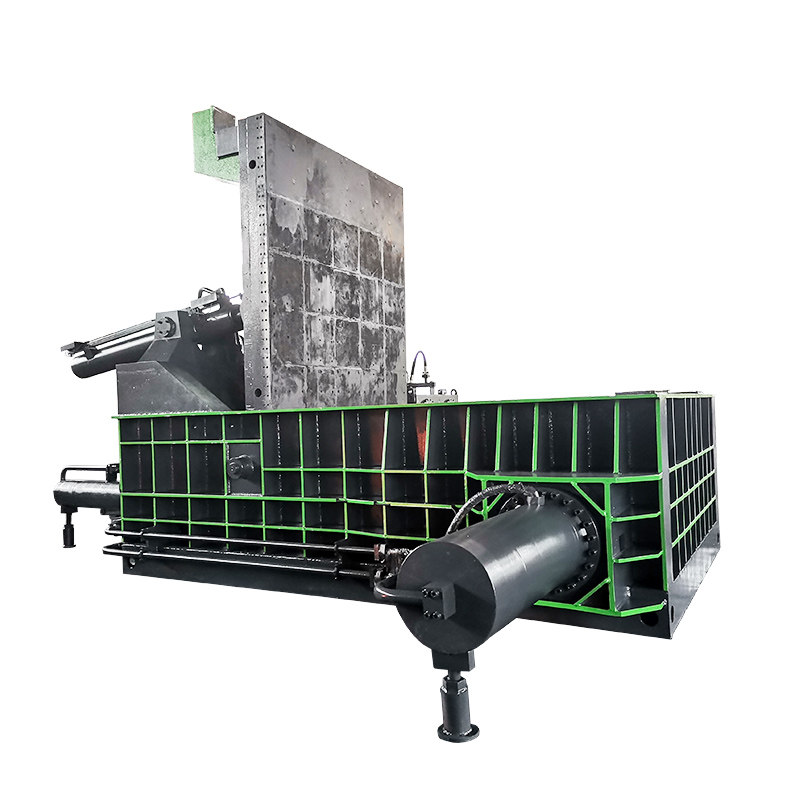

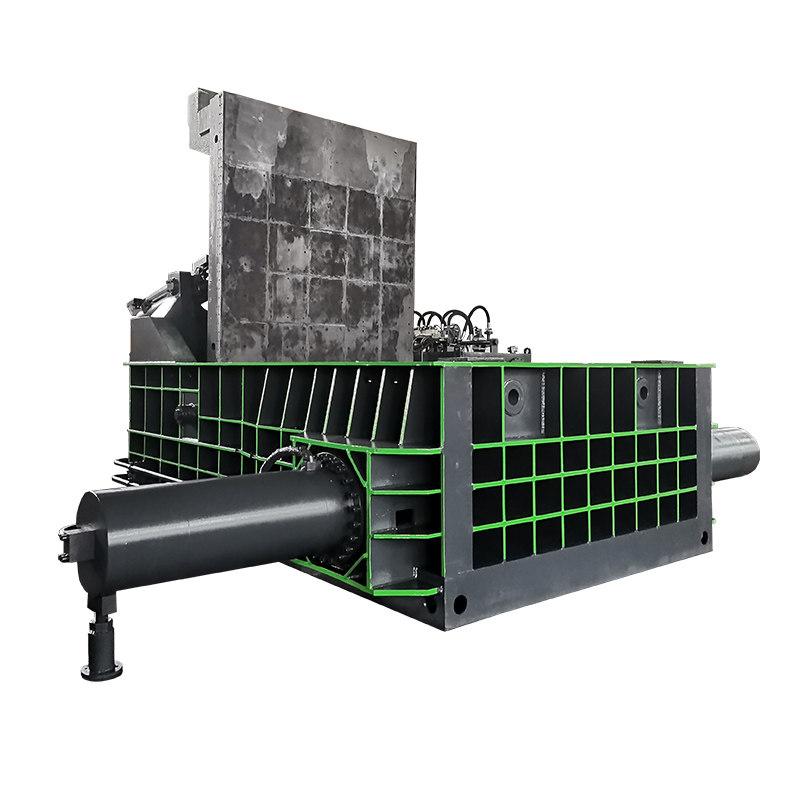

Semi-automatic Scrap Metal Baler Recycling Machine

Semi-automatic Scrap Metal Baler Recycling Machine

Y81K-315 hydraulic metal baler is mainly suitable for small scrap metal recycling plants. This machine adopts PLC control system with high efficiency and easy operation, which can be operated by one person. The double main cylinder presses the material, and the pressed block has a compact structure and high density. After the packing is completed, the bales are discharged by manual taking out. Most customers will also be equipped with claw machines or suction cups to take out the bales.
CONTACT NOW

Details

Product Description

Y81K-315 hydraulic metal baler is mainly suitable for small scrap metal recycling plants. This machine adopts PLC control system with high efficiency and easy operation, which can be operated by one person. The double main cylinder presses the material, and the pressed block has a compact structure and high density. After the packing is completed, the bales are discharged by manual taking out. Most customers will also be equipped with claw machines or suction cups to take out the bales.

Technical Parameters

ModelMain Cyl.Force(ton)Press Box Size(mm)Bale Size(mm)Bale Weight(kg)Power(kw)
Y81F-3153153000*2500*1200600*600400-70090
Y81F-3153153500*3000*1200600*600/700*700600-100090
Y81K-3153154000*3000*1200600*600/700*700800-120090

The parameters in the table are for reference only

Machine Detail

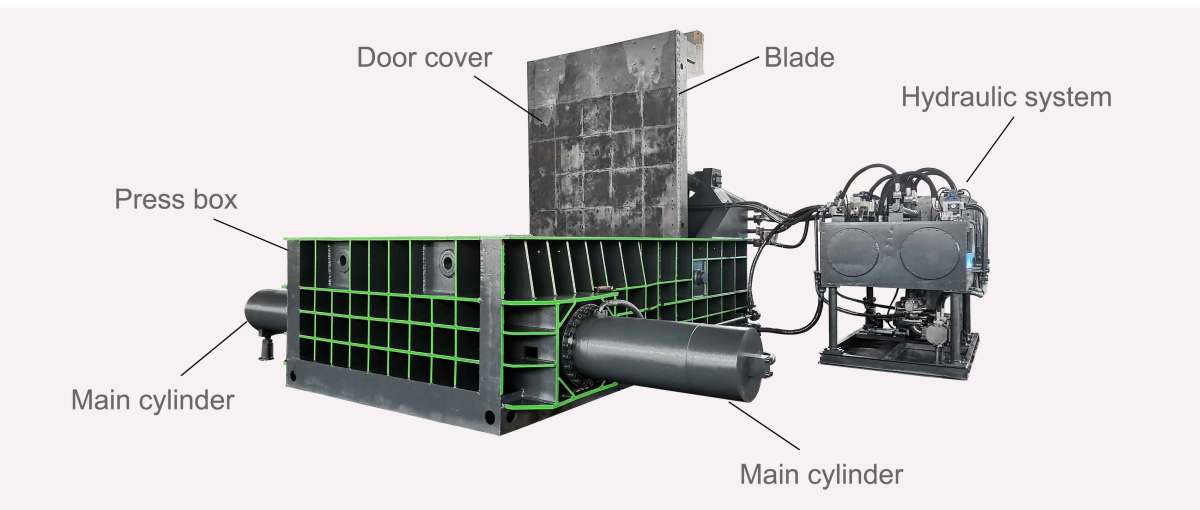

Y81K-315-detail-4

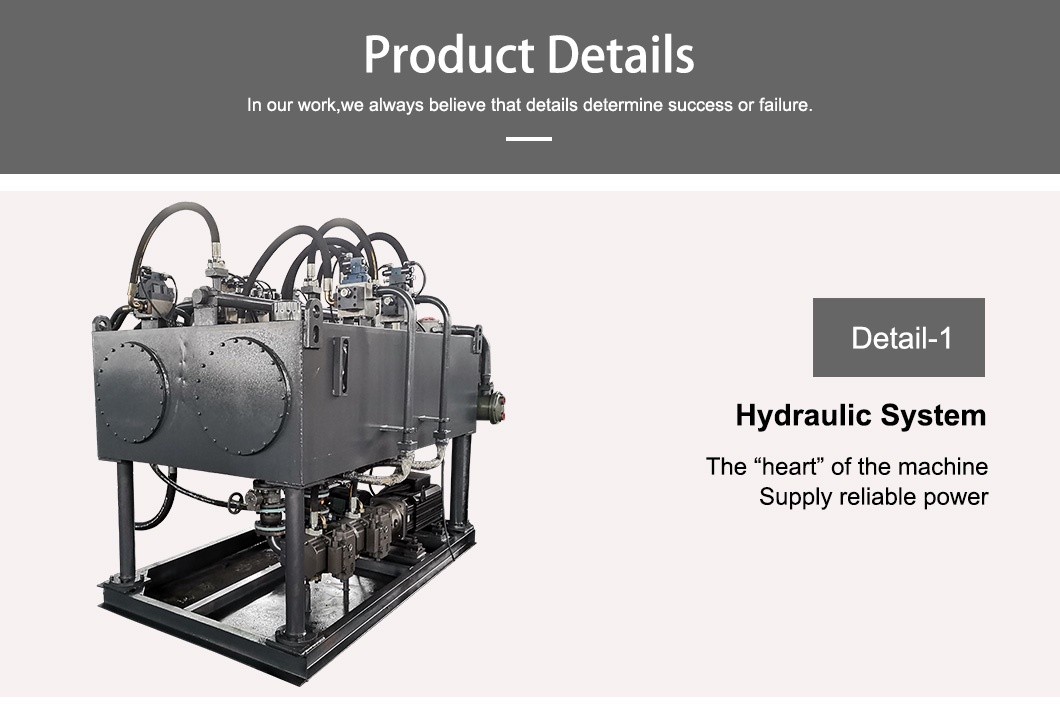

Y81K-315-detail-1

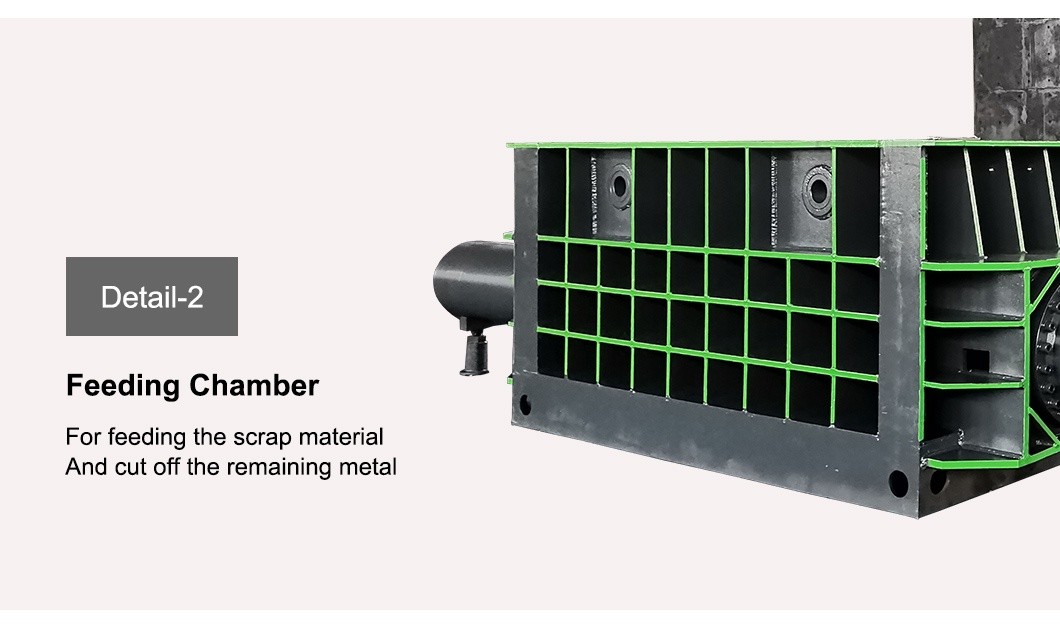

Y81K-315-detail-2

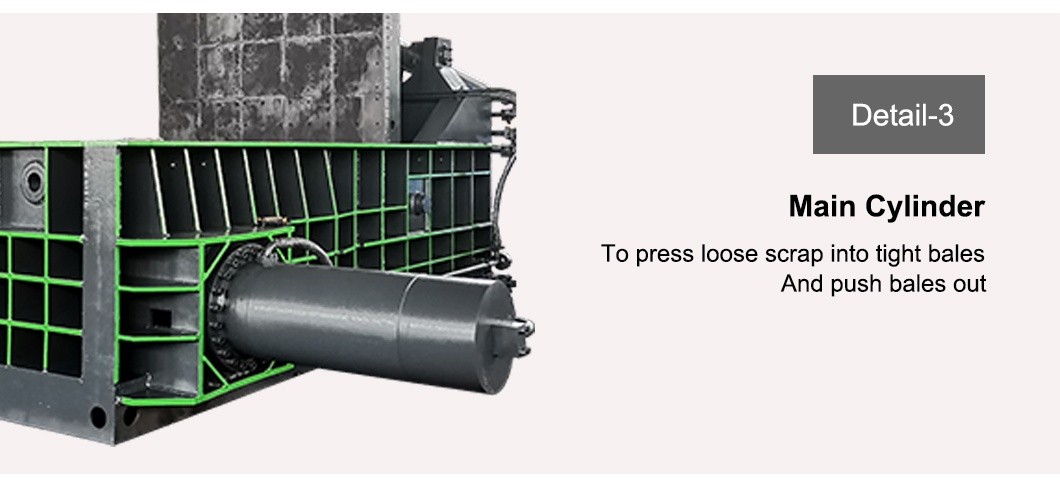

Y81K-315-detail-3
