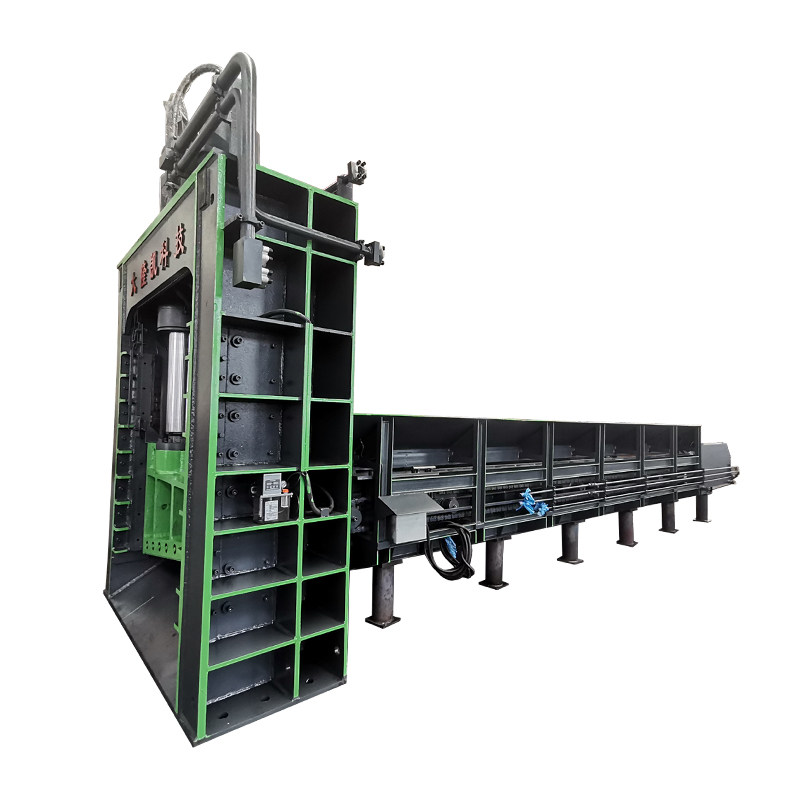

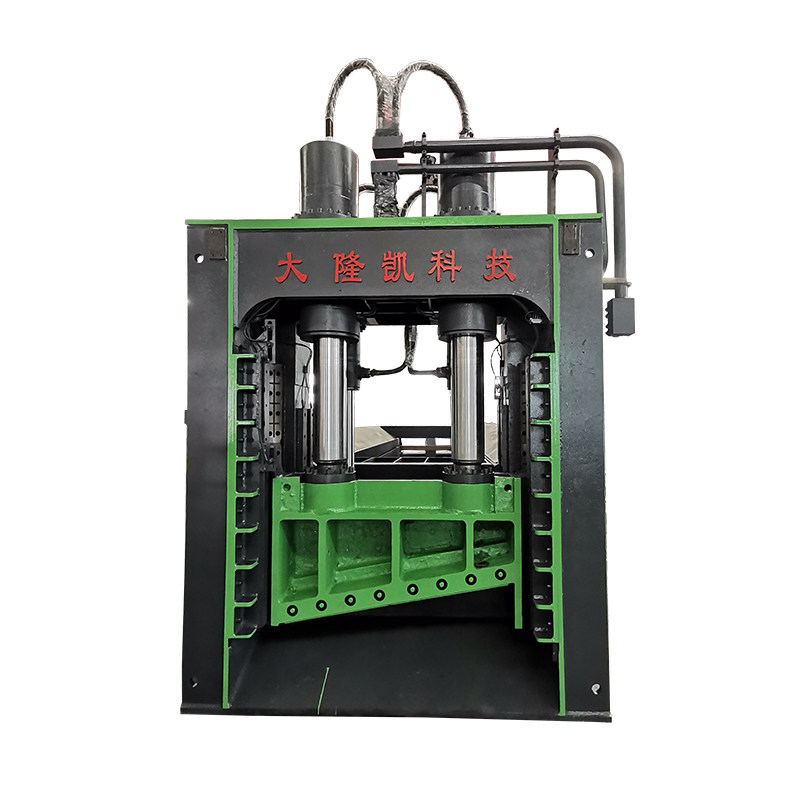

500T Heavy Hydraulic Gantry Shear Scrap Metal Cutting Machine

Q91Y series hydraulic gantry shears can cut all kinds of scrap metal and steel.

CONTACT NOW

Details

Product Description

Q91Y series hydraulic gantry shears can cut all kinds of scrap metal and steel.

Technical Parameters

Model	Max.Cutting Force (ton)	Press Box Size (mm)	Blade Length (mm)	Production Rate (t/h)	Cutting Frequency (times/min)	Power (kw)
Q91Y-400	400	60001300500	1400	4-7	2-4	90
Q91Y-500	500	60001500700	1600	5-8	2-4	110
Q91Y-630	630	800017001200	1800	12-15	2-4	150
Q91Y-800	800	800019001200	2000	15-25	2-4	225
Q91Y-1000	1000	800020001200	2500/2100	18-25	2-4	270
Q91Y-1200	1250	800024001200	2500	20-28	2-4	300

The parameters in the above table are for reference only.
